Friday, 31 March 2017

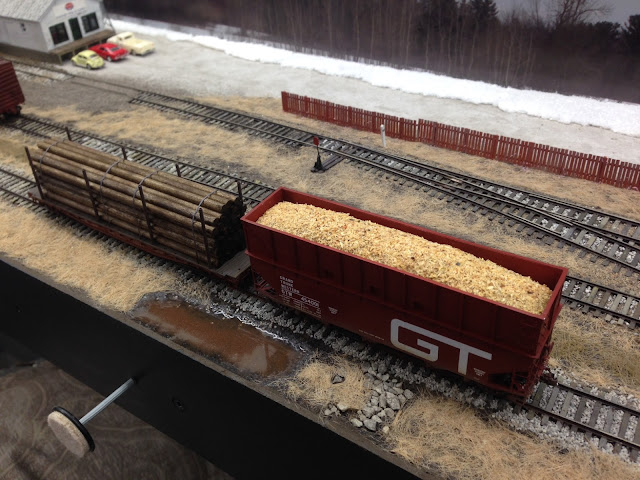

GTW Woodchip Hopper and Southern Flat

  I finally finished up the GTW wood chip hopper project.  These cars were loaded at Wilner Wood products of Norway Maine and billed to the Brown company in Berlin, NH, a pulp and paper plant.  I painted it with True Colour CN red #11.  I had the decals custom designed and printed by Precision Design Company.  As usual their service and decals are top notch.

  There were 21 cars in the series consisting of  #'s 454001 - 454021.  The first 14 were constructed during 1964-66, with the remaining cars built in 1971.  They were originally American Car and Fundry built 70 Ton offset side triple hoppers.  Wood extensions were added to increase the capacity.  My son made the load for it using foam and saw dust from our table saw.

    The Southern flat car is a resin kit available from Mask Island decals.

   It came with a laser cut wood deck, unfortunately the pocket holes didn't line up very well with those on the body, so I made a new deck from 0.060" V-Groove Styrene sheet. I scribed individual board lines on the edges to make them look like separate boards.

  The load simulates hydro poles made from Southern Yellow Pine logs.  They are 3/16" Poplar dowels stained with Minwax Dark Walnut stain. I also dusted them with some Bragdon powders.   The stakes are brass rod, turned down to fit in the stake pockets on one end and drilled on the other so they look to be made from steel tubes.  The Brass stakes and poles add much needed mass to this car.  The poles are glued together by flowing some thin CA on the end of the pile and are secured to the deck with metal strapping made from black construction paper.

  I gave the under body a full set of brake rigging, you can't see it but I know its there.

  The car  is painted with Scale Coat Oxide Red and decalled with the fine Mask Island Decals supplied in the kit.

  Both cars are fitted with Rapido's 70 Ton Barber S2A trucks.

Wednesday, 8 March 2017

Rebuilt PRR X29's

  I finished up these two X29 rebuilds last night.  An X29B and a X29D.  Both are F&C kits.  I upgraded them with Yarmouth Model Works stirrups, Tichy wire, Kadee grabs and Plano etched metal running boards.

  The kit decals were not very crisp, but overall I am happy with them.  About a week after I put the decals on, Speedwitch Media announced new decal sets for the X29B, figures....

  As for weathering I went for a less is more approach. Dirty but not abused.  The X29D is on the left with the eight foot door, the X29B sports a seven foot door.
